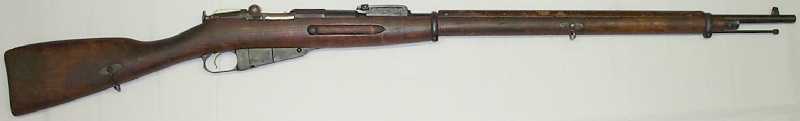

Finnish 1943 Tikkakoski M91

Finnish 1943 Tikkakoski M91
All content copyright © 7.62x54r.net
Return to 7.62x54r Ammunition Introduction


Barrel length	Pattern	Twist rate	Bore diameter	Groove diameter	Bore condition	Weight	Sight height above bore
31 1/2"	4 groove	1 in 9.5"	.300"	.312"	new	9.50 lbs.	.798"

Click on the data link for each type of ammo to access pictures, more physical and ballistic data, and ballistic graphs for this firearm and others. Click on the column headers to resort the table by the data in that column. The sort order can be reversed by clicking on the column title a second time Please be patient while the page reloads after sorting. Return to the original order by sorting the Reference Number column.
Ref. #	Country	Ammo	Bullet			Muzzle Velocity (Feet per Second)					Muzzle Energy Foot Lbs.	Recoil
Ref. #	Country	Ammo	Weight Grains	Ballistic Coefficient	Sectional Density	Low	High	Avg.	Extreme Spread	Standard Deviation	Muzzle Energy Foot Lbs.	Velocity Feet/Second	Energy Foot Lbs.
001	USSR DATA	1986 CW	147.8	0.325	0.219	2847	2922	2874	75	30	2714	10.0	14.8
002	USSR	1955 CW, ST	148.6	X	X	X	X	X	X	X	X	X	X
003	USSR DATA	1940 CW	148.2	0.363	0.220	2839	2911	2872	72	28	2710	10.3	15.6
004	Hungary DATA	1987 LC	148.8	0.242	0.220	2838	2883	2861	45	24	2707	9.9	14.6
005	Hungary DATA	Etalon WT	148.7	0.502	0.220	2782	2940	2852	158	46	2690	10.1	15.1
006	Hungary DATA	1975 LC, SYT	181.7	0.442	0.269	2464	2563	2525	99	34	2576	10.0	14.7
007	Hungary DATA	1970 CW, SYT	182.6	0.556	0.272	2480	2541	2512	61	22	2677	9.9	14.5
008	Hungary DATA	1951 CW, YT	182.1	0.479	0.269	2641	2726	2690	85	26	2924	10.7	16.9
009	Hungary DATA	1969 CW	149.1	0.338	0.221	2776	2847	2815	71	27	2621	9.9	14.5
010	Yugoslavia DATA	1976 BC	182.6	0.566	0.270	2627	2694	2649	67	21	2851	10.7	17.0
011	Czech. DATA	1963 LC, ST	148.3	0.401	0.220	2849	2891	2868	42	17	2703	10.0	14.8
012	Czech. DATA	1953 LC, YT	181.9	0.421	0.271	2580	2623	2597	43	16	2726	10.4	15.9
013	Czech. DATA	1964 WT, SR	44.8	0.052	0.066	3642	3857	3719	215	131	1382	6.8	6.9
014	Albania DATA	1986 BC	147.8	0.384	0.219	2831	2879	2861	48	21	2689	9.9	14.5
015	Bulgaria DATA	1955 BC	149.6	0.403	0.222	2809	2885	2842	76	26	2689	10.0	14.9
016	Bulgaria DATA	1955 BC, YT	182.0	0.368	0.269	2648	2703	2682	55	22	2907	10.7	16.8
017	Russia DATA	Wolf FMJ	148.4	0.478	0.219	2780	2895	2845	115	36	2659	10.0	14.8
018	Russia DATA	Wolf SP	202.8	0.412	0.300	2292	2371	2334	79	29	2456	9.5	13.3
019	Russia DATA	Barnaul SP	204.4	0.400	0.301	2276	2368	2322	92	32	2442	9.4	13.1
020	Czech. DATA	1987 CW	148.5	0.428	0.219	2788	2840	2819	52	18	2612	9.9	14.5
021	Poland DATA	1972 CW, ST	147.8	0.447	0.220	2724	2836	2792	112	40	2561	9.8	14.2
022	Russia DATA	B. Bear FMJ	185.8	0.516	0.276	2451	2549	2499	98	27	2579	9.5	13.4
023	Russia DATA	B. Bear SP	204.1	0.333	0.303	2366	2421	2389	55	24	2585	9.7	13.9
024	Yugoslavia DATA	Privi Ptz. SP	180.8	0.372	0.267	2582	2680	2630	98	37	2779	10.5	16.3
025	USSR DATA	1971 CW, ST	148.2	0.377	0.219	2795	2860	2826	65	23	2624	9.9	14.6
026	China DATA	1953 BC	148.3	0.336	0.219	2944	3004	2979	60	23	2917	10.6	16.6
027	Finland DATA	1973 Match	185.4	0.547	0.279	2480	2611	2541	131	48	2653	10.0	14.6
028	China DATA	1966 CW	148.6	0.401	0.221	2772	2837	2810	65	25	2611	9.7	13.8
029	Serbia DATA	WG/PP FMJ	151.5	0.415	0.225	2824	2862	2841	38	18	2724	10.3	15.5
030	Russia (7N1) DATA	1997 sniper	152.0	0.498	0.225	2797	2846	2812	49	18	2668	9.9	14.6
031	Bosnia-Herz. DATA	Igman SP	149.4	0.331	0.221	2898	2950	2928	52	22	2835	10.5	16.3
032	Hungary DATA	1951 CW	148.8	0.431	0.221	2873	2972	2911	99	30	2804	10.3	15.6
033	Poland DATA	1986 CW	147.7	0.538	0.219	2788	2878	2815	90	27	2604	9.8	14.2
034	East Germ. DATA	1983 SR	124.3	0.344	0.183	2562	2696	2636	134	43	1912	7.7	8.8
035	Greece DATA	Olympic FMJ	172.2	0.298	0.256	2544	2596	2575	52	23	2532	9.8	14.1
036	Bulgaria DATA	1987 CW	148.1	0.370	0.219	2743	2808	2775	65	24	2529	9.8	14.1
037	Albania DATA	1987 LC	148.3	0.435	0.219	2857	2918	2887	61	21	2739	10.0	14.9

Abbreviations:
CW = copper washed case, LC = lacquered case, BC = brass case, SR = short range
ST = silver tip, YT = yellow tip, SYT = silver over yellow tip, WT = white tip
FMJ = full metal jacket, SP = soft point

Notes:
#1 Unreliable ignition, no data available

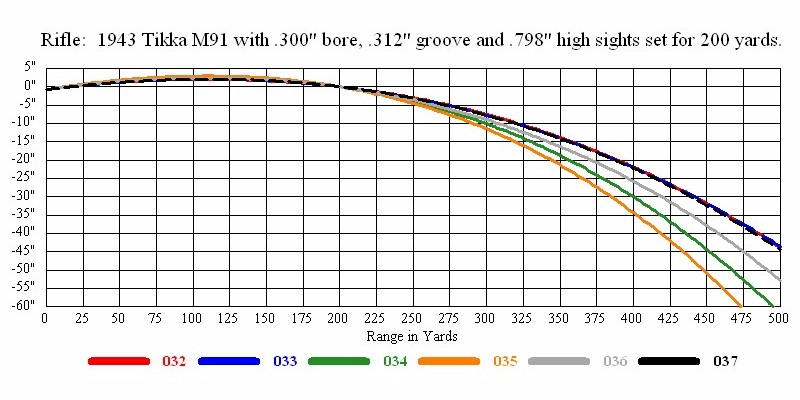

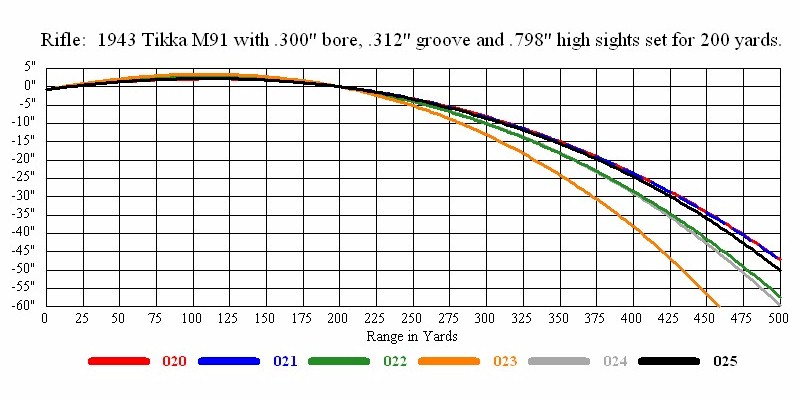

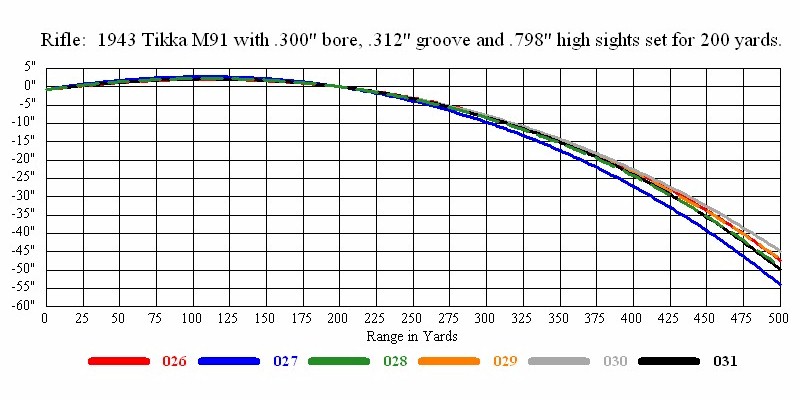

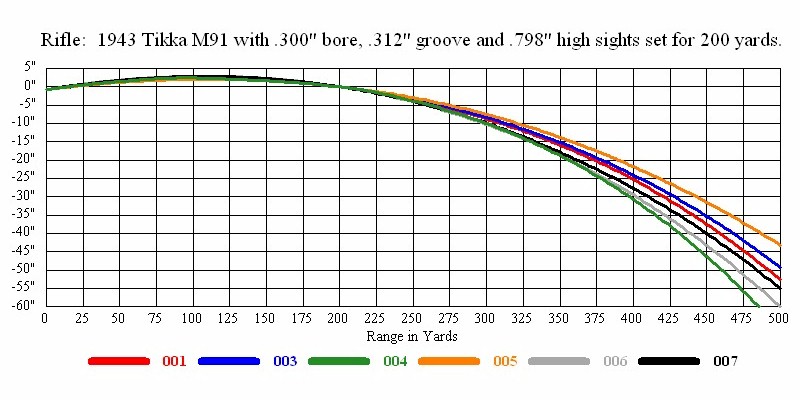

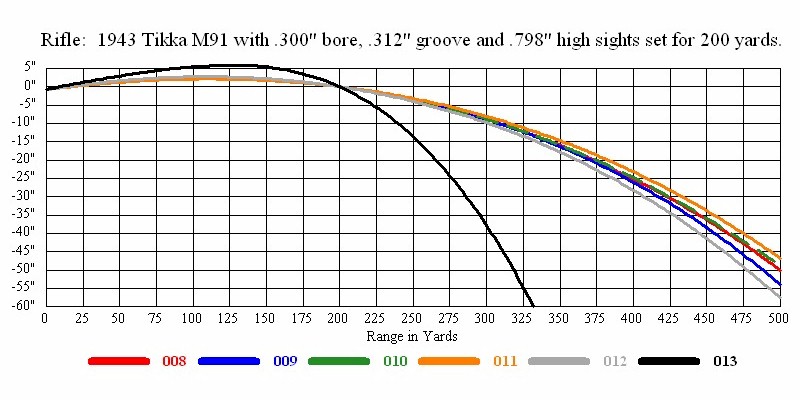

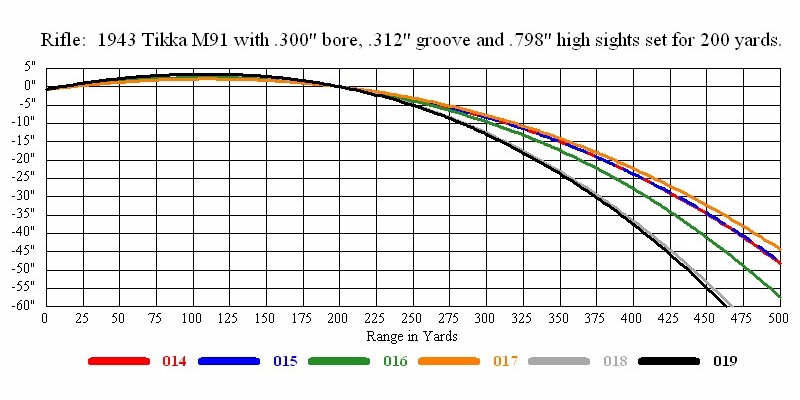

Trajectory Comparison Graphs
These graphs illustrate the trajectories of each type of ammo from this rifle using the reference numbers in the chart above.
Click on each graph for a large, scalable PDF to zoom in for better detail clarity. Adobe Reader required.
