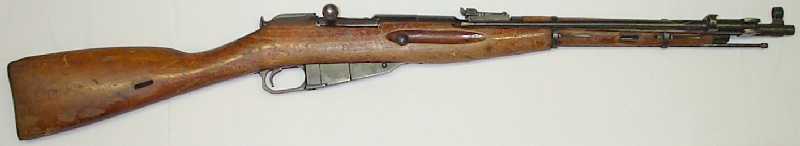

Soviet 1945 Izhevsk M44

Soviet 1945 Izhevsk M44
All content copyright © 7.62x54r.net
Return to 7.62x54r Ammunition Introduction


Barrel length	Pattern	Twist rate	Bore diameter	Groove diameter	Bore condition	Weight	Sight height above bore
20 1/4"	4 groove	1 in 9.5"	.302"	.313"	rounded lands, some pitting	8.25 lbs.	.895"

Click on the data link for each type of ammo to access pictures, more physical and ballistic data, and ballistic graphs for this firearm and others. Click on the column headers to resort the table by the data in that column. The sort order can be reversed by clicking on the column title a second time Please be patient while the page reloads after sorting. Return to the original order by sorting the Reference Number column.
Ref. #	Country	Ammo	Bullet			Muzzle Velocity (Feet per Second)					Muzzle Energy Foot Lbs.	Recoil
Ref. #	Country	Ammo	Weight Grains	Ballistic Coefficient	Sectional Density	Low	High	Avg.	Extreme Spread	Standard Deviation	Muzzle Energy Foot Lbs.	Velocity Feet/Second	Energy Foot Lbs.
001	USSR DATA	1986 CW	147.8	0.325	0.219	2577	2652	2629	75	30	2271	10.5	14.2
002	USSR Note #1	1955 CW, ST	148.6	X	X	X	X	X	X	X	X	X	X
003	USSR DATA	1940s CW	148.2	0.363	0.220	2591	2689	2628	98	32	2269	10.8	14.9
004	Hungary DATA	1987 LC	148.8	0.242	0.220	2665	2742	2701	77	34	2413	10.7	14.9
005	Hungary DATA	Etalon WT	148.7	0.502	0.220	2525	2711	2602	186	50	2239	10.5	14.3
006	Hungary DATA	1975 LC, SYT	181.7	0.442	0.269	2407	2474	2445	67	25	2414	10.6	14.4
007	Hungary DATA	1970 CW, SYT	182.6	0.556	0.272	2406	2462	2427	56	18	2393	10.5	14.2
008	Hungary DATA	1951 CW, YT	182.1	0.479	0.269	2483	2610	2543	127	35	2613	11.6	17.3
009	Hungary DATA	1969 CW	149.1	0.338	0.221	2574	2635	2611	61	25	2254	10.5	14.3
010	Yugoslavia DATA	1976 BC	182.6	0.566	0.270	2388	2477	2424	89	30	2386	10.7	14.8
011	Czech. DATA	1963 LC, ST	148.3	0.401	0.220	2668	2702	2685	34	16	2369	10.7	14.8
012	Czech. DATA	1953 LC, YT	181.9	0.421	0.271	2421	2459	2436	38	17	2397	10.6	14.6
013	Czech. DATA	1964 WT, SR	44.8	0.052	0.066	3242	3433	3404	191	135	1158	7.1	6.6
014	Albania DATA	1986 BC	147.8	0.384	0.219	2570	2629	2603	59	26	2226	10.3	13.7
015	Bulgaria DATA	1955 BC	149.6	0.403	0.222	2584	2635	2610	51	21	2268	10.6	14.4
016	Bulgaria DATA	1955 BC, YT	182.0	0.368	0.269	2485	2521	2499	36	16	2524	10.9	15.3
017	Russia DATA	Wolf FMJ	148.4	0.478	0.219	2495	2598	2554	103	31	2143	10.3	13.6
018	Russia DATA	Wolf SP	202.8	0.412	0.300	2215	2260	2235	45	18	2251	10.4	14.0
019	Russia DATA	Barnaul SP	204.4	0.400	0.301	2161	2202	2182	41	20	2155	10.1	13.3
020	Czech. DATA	1987 CW	148.5	0.428	0.219	2628	2678	2648	50	19	2304	10.7	14.7
021	Poland DATA	1972 CW, ST	147.8	0.447	0.220	2618	2679	2649	61	24	2306	10.7	14.7
022	Russia DATA	B. Bear FMJ	185.8	0.516	0.276	2267	2332	2300	65	23	2184	10.1	13.0
023	Russia DATA	B. Bear SP	204.1	0.333	0.303	2200	2258	2222	58	23	2237	10.3	13.8
024	Yugoslavia DATA	WG/PP SP	180.8	0.372	0.267	2435	2486	2464	51	22	2240	10.7	14.9
025	USSR DATA	1971 CW, ST	148.2	0.377	0.219	2626	2672	2647	46	19	2303	10.7	14.7
026	China DATA	1953 BC	148.3	0.336	0.219	2710	2752	2726	42	19	2442	11.1	15.9
027	Finland DATA	1973 Match	185.4	0.547	0.279	2436	2606	2500	170	56	2567	10.7	14.9
028	China DATA	1966 CW	148.6	0.401	0.221	2579	2643	2625	64	23	2280	10.3	13.8
029	Serbia DATA	WG/PP FMJ	151.5	0.415	0.225	2570	2623	2606	53	23	2292	10.8	15.0
030	Russia (7N1) DATA	1997 sniper	152.0	0.498	0.225	2571	2621	2594	50	20	2271	10.5	14.2
031	Bosnia-Herz. DATA	Igman SP	149.4	0.331	0.221	2693	2737	2715	44	20	2439	11.1	16.0
032	Hungary DATA	1951 CW	148.8	0.431	0.221	2664	2718	2691	54	23	2396	10.9	15.2
033	Poland DATA	1986 CW	147.7	0.538	0.219	2594	2667	2636	73	31	2282	10.5	14.3
034	East Germ. DATA	1983 SR	124.3	0.344	0.183	2351	2462	2402	111	41	1588	7.6	7.5
035	Greece DATA	Olympic FMJ	172.2	0.298	0.256	2345	2409	2368	64	23	2141	9.8	12.5
036	Bulgaria DATA	1987 CW	148.1	0.370	0.219	2583	2707	2622	124	36	2259	10.6	14.4
037	Albania DATA	1987 LC	148.3	0.435	0.219	2665	2745	2706	80	25	2405	10.8	15.0

Abbreviations:
CW = copper washed case, LC = lacquered case, BC = brass case, SR = short range
ST = silver tip, YT = yellow tip, SYT = silver over yellow tip, WT = white tip
FMJ = full metal jacket, SP = soft point

Notes:
#1 Unreliable ignition, no data available

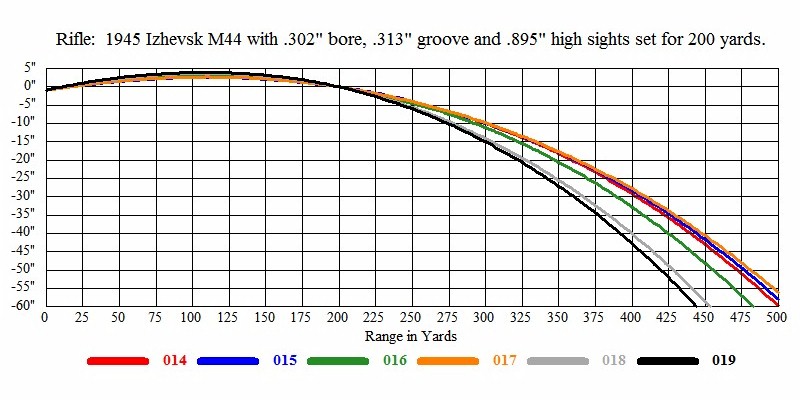

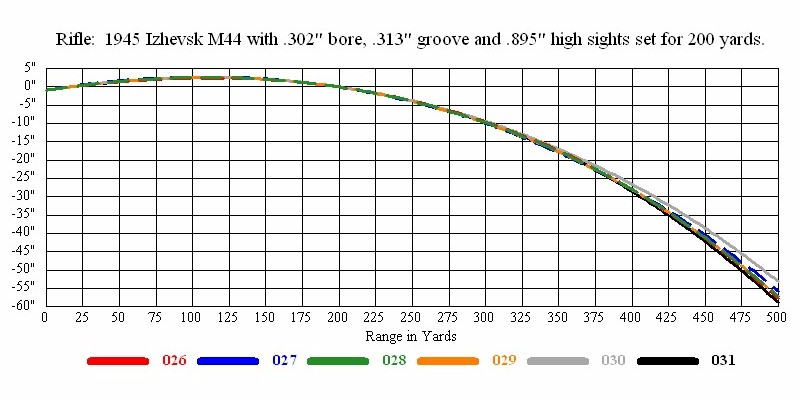

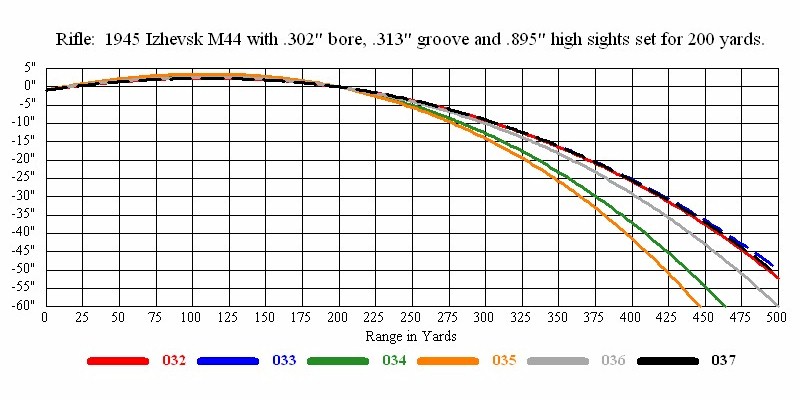

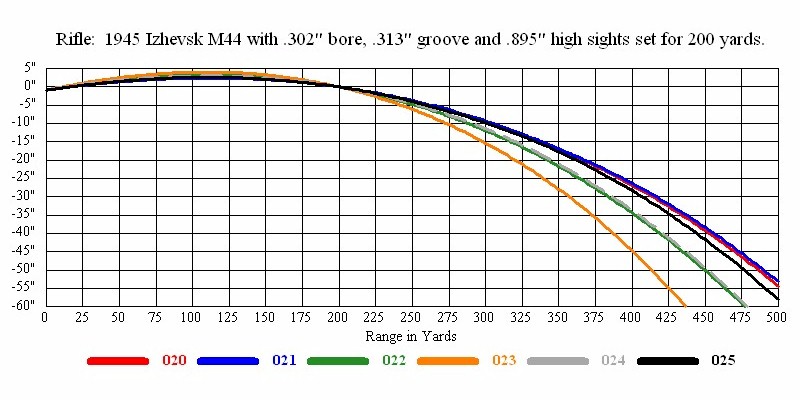

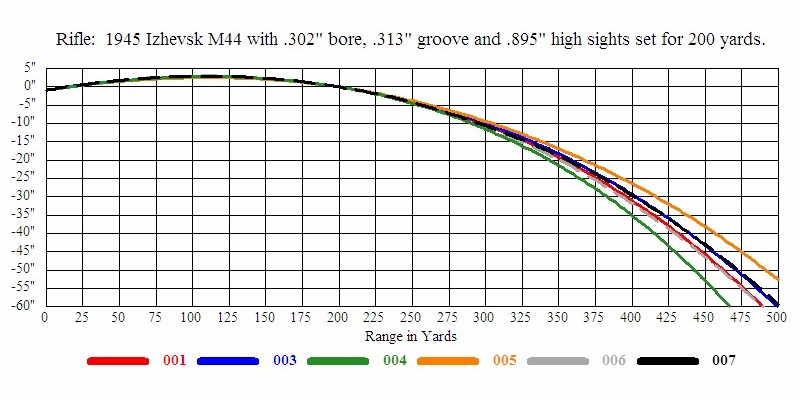

Trajectory Comparison Graphs
These graphs illustrate the trajectories of each type of ammo from this rifle using the reference numbers in the chart above.
Click on each graph for a large, scalable PDF to zoom in for better detail clarity. Adobe Reader required.
